Additional information

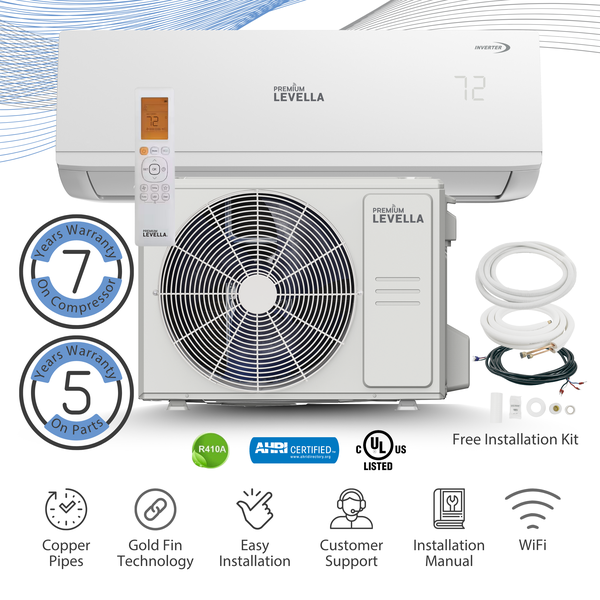

- Brand: Premium Levella
- Model: PIAW123690A/700B
- Cooling Rated Capacity: 12000 BTU (1 Ton ~500 sqft )
- Cooling Capacity Range: 4,300~12,600 BTU/h
- Heating Rated Capacity: 12000 BTU (1 Ton ~500 sqft )
- Heating Capacity Range: 4,000~12,500 BTU/h
- Cooling SEER: 20.00
- Cooling SEER2: 20.80
- Cooling EER(A2): 10.30
- Cooling EER2(A Full): 10.30
- Heating HSPF (Region IV): 10.80
- Heating HSPF2 (Region IV): 8.70
- Power Supply: 115V~60Hz, 1Ph
- Pipe line: 1/4''-1/2''
- Refrigerant Type: R-410A
- Inverter: Yes
- Wifi: Yes

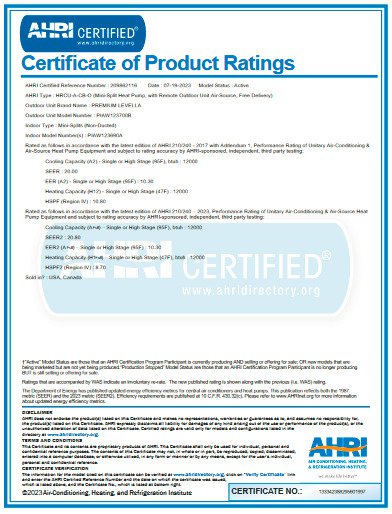

- Certifications: AHRI, UL
- Indoor unit:
- Model: PIAW123690A
- Gross weight: 25.40 LB
- Net weight: 18.50 LB
- Packing dimensions(WxDxH in): 34.40 x 11.20 x 14.80
- Product dimensions(WxDxH in): 31.57 x 7.87 x 11.61
- Pipe line: 1/4''-1/2''
- Anticorrosive: GoldFin
- Temperature display: F° & C°
- Sound Level (Hi/Med/Lo): 41/35/26.5 dB(A)
- Air Flow (Turbo/Hi/Med/Lo): 330/300/241/177 CFM
- Room Temperature COOL mode: 60°F - 90°F
- Room Temperature HEAT mode: 32°F - 86°F
- Room Temperature DRY mode: 50°F - 90°F
- UPC: 71568808809
- Outdoor unit:
- Model: PIAW123700B-O
- Gross weight: 71.90 LB
- Net weight: 62.20 LB
- Packing dimensions(WxDxH in): 34.80 x 14.80 x 23.80
- Product dimensions(WxDxH in): 30.11 x 11.90 x 21.85
- Pipe line: 1/4''-1/2''
- Anticorrosive: GoldFin
- Sound Level: 53.5 dB(A)
- Breaker Needed: 20A (single-pole)
- Outdoor Temperature COOL mode: 5°F - 122°F
- Outdoor Temperature HEAT mode: 5°F - 75°F
- Outdoor Temperature DRY mode: 32°F - 122°F
- UPC: 715688088102
